Product Overview
BHP low-voltage switchboards receive power from a utility supply or transformer and distribute it to downstream feeders and distribution equipment.
Designed for main service and power distribution applications, the low-voltage switchboard series is currently undergoing evaluation for UL certification to UL 891.
It offers main bus ratings up to 4,000 A and short-circuit current ratings (SCCR) up to 100 kA.
Applications
- Industrial complexes & plants
- Commercial & institutional buildings
- Data centers & critical facilities
- Utility service entrance

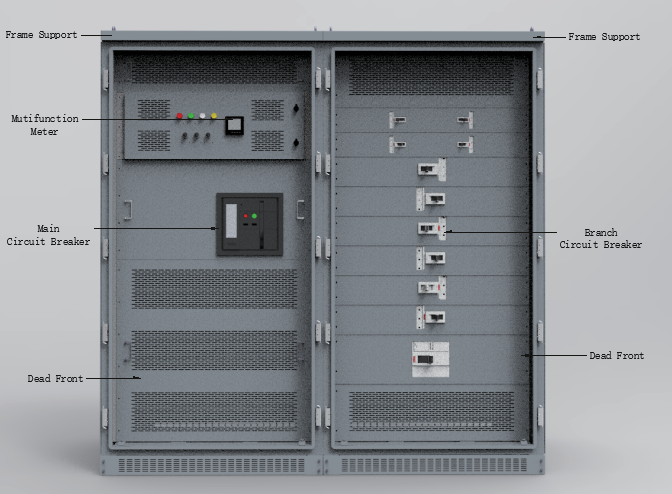

High Reliability & Safety
- UL 891 tested and approved
- Dead-front, isolated bus design
- Safe arc-blow pressure relief channel
- User safety considerations
Modularity & Scalability
- Modular sections L/S/I/G
- Easy to add feeder sections
- Flexible incoming / outgoing layout
Switchboard Specifications

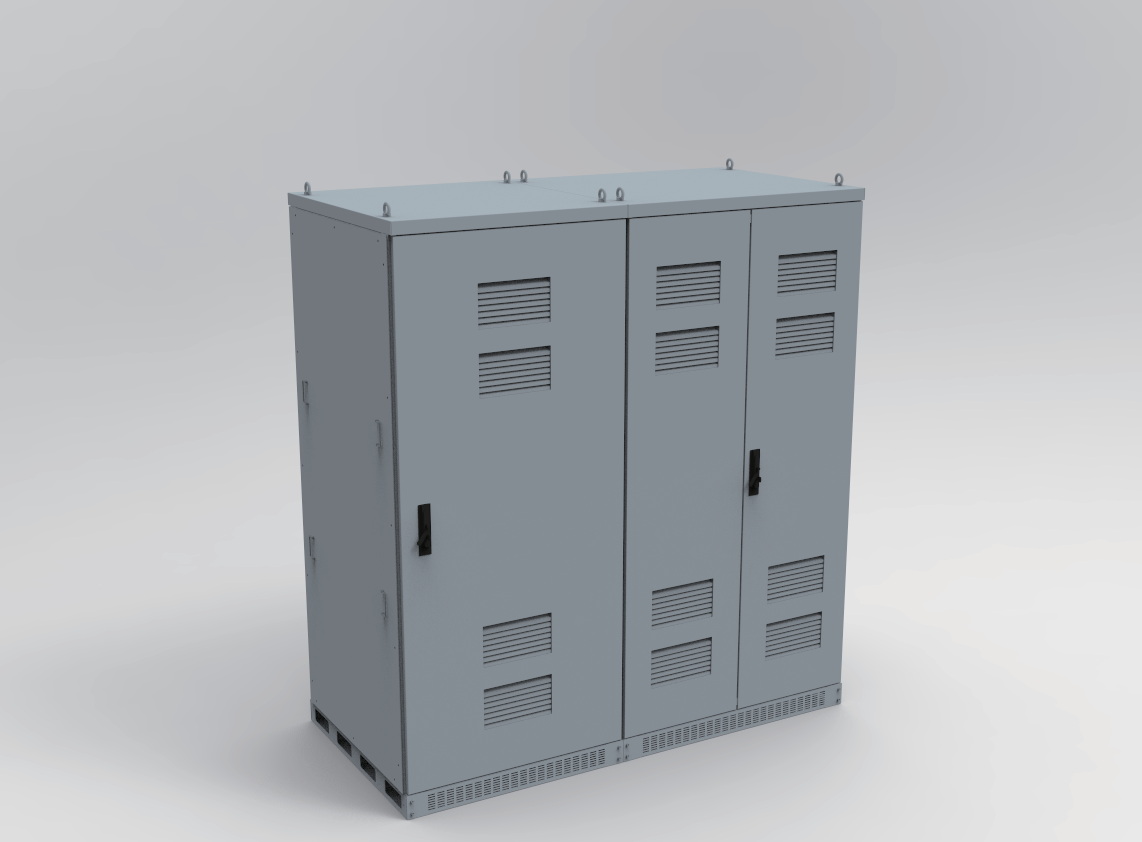

LSB-1
- Bus System: Bolt-on type
- Main Breaker: 1600-2500 A
- Branch Breakers: 150-800 A
- Enclosure: NEMA Type 3R (Indoor & Outdoor), Rear and front accessible
- Std. Main Dimensions: W38" x H90" x D40"
- Std. Feeder Dimensions: W45" x H90" x D40"
- Breaker: UL 1066 and UL 489 Standard
- Switchboard: UL 891 Standard
LSB-1 switchboard specifications
| Description |
1600 AF |
2000 AF |
2500 AF |
| Rated Current (A)—Main Breaker |
UAH-16E3-16 |
UAH-20E3-20 |
UAH-25E3-25 |
| Rated Current (A)—Branch Breaker |
UTS150 / UTS250 / UTS400 / UTS600 / UTS800 |
| Short Circuit Current Rating (kA,rms) |
Up to 480 V, up to 100 kA |
| Main Bus Type |
Bolt-on |
| Enclosure Type |
NEMA 3R (Indoor & Outdoor) |
| Std. Main Dimension—W |
38in (965.2mm) |
| Std. Main Dimension—H |
90in (2286mm) |
| Std. Main Dimension—D |
40in (1016mm) |
| Std. Feeder Dimension—W |
45in (1143mm) |
| Std. Feeder Dimension—H |
90in (2286mm) |
| Std. Feeder Dimension—D |
40in (1016mm) |
| Certification Status |
UL certification in progress |

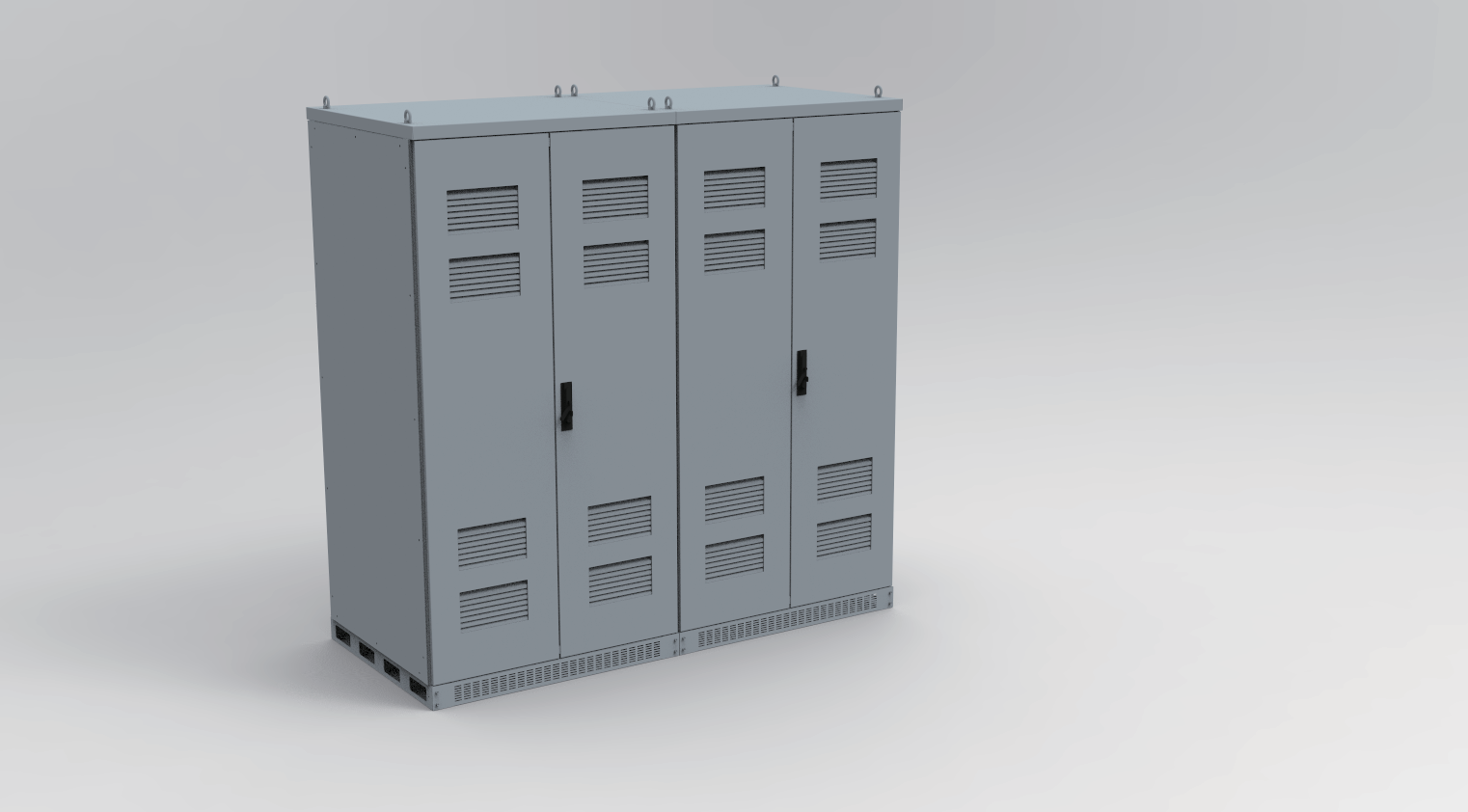

LSB-2
- Bus System: Bolt-on type
- Main Breaker: 3200-4000 A
- Branch Breakers: 150-800 A
- Enclosure: NEMA Type 3R (Indoor & Outdoor), Rear and front accessible
- Std. Main Dimensions: W45" x H90" x D40"
- Std. Feeder Dimensions: W45" x H90" x D40"
- Breaker: UL 1066 and UL 489 Standard
- Switchboard: UL 891 Standard
LSB-2 switchboard specifications
| Description |
3200 AF |
4000 AF |
| Rated Current (A)—Main Breaker |
UAH-32G3-32 |
UAH-40G3-40 |
| Rated Current (A)—Branch Breaker |
UTS150 / UTS250 / UTS400 / UTS600 / UTS800 |
| Short Circuit Current Rating (kA,rms) |
Up to 480 V, up to 100 kA |
| Main Bus Type |
Bolt-on |
| Enclosure Type |
NEMA 3R (Indoor & Outdoor) |
| Std. Main Dimension—W |
45in (1143mm) |
| Std. Main Dimension—H |
90in (2286mm) |
| Std. Main Dimension—D |
40in (1016mm) |
| Std. Feeder Dimension—W |
45in (1143mm) |
| Std. Feeder Dimension—H |
90in (2286mm) |
| Std. Feeder Dimension—D |
40in (1016mm) |
| Certification Status |
UL certification in progress |
