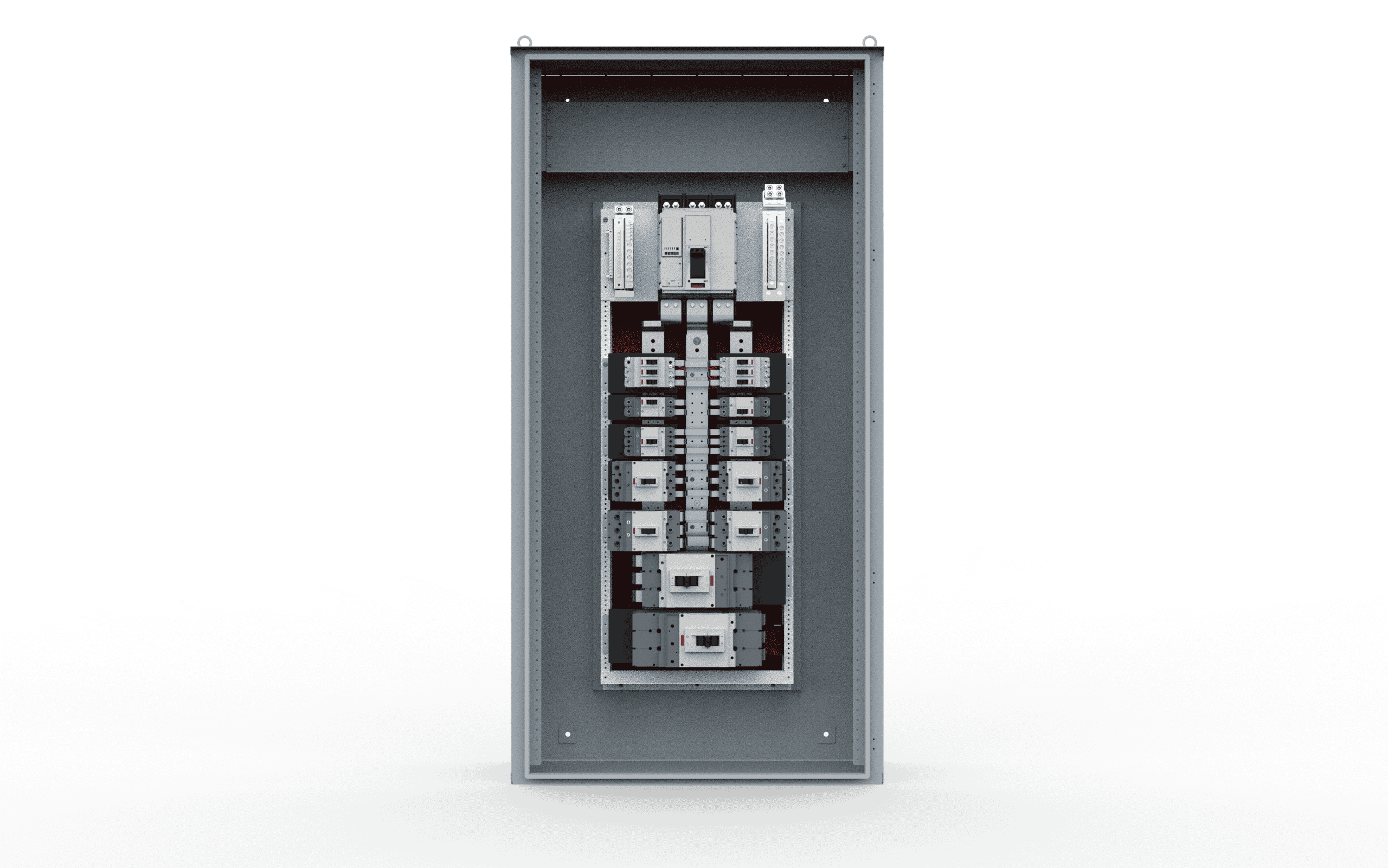

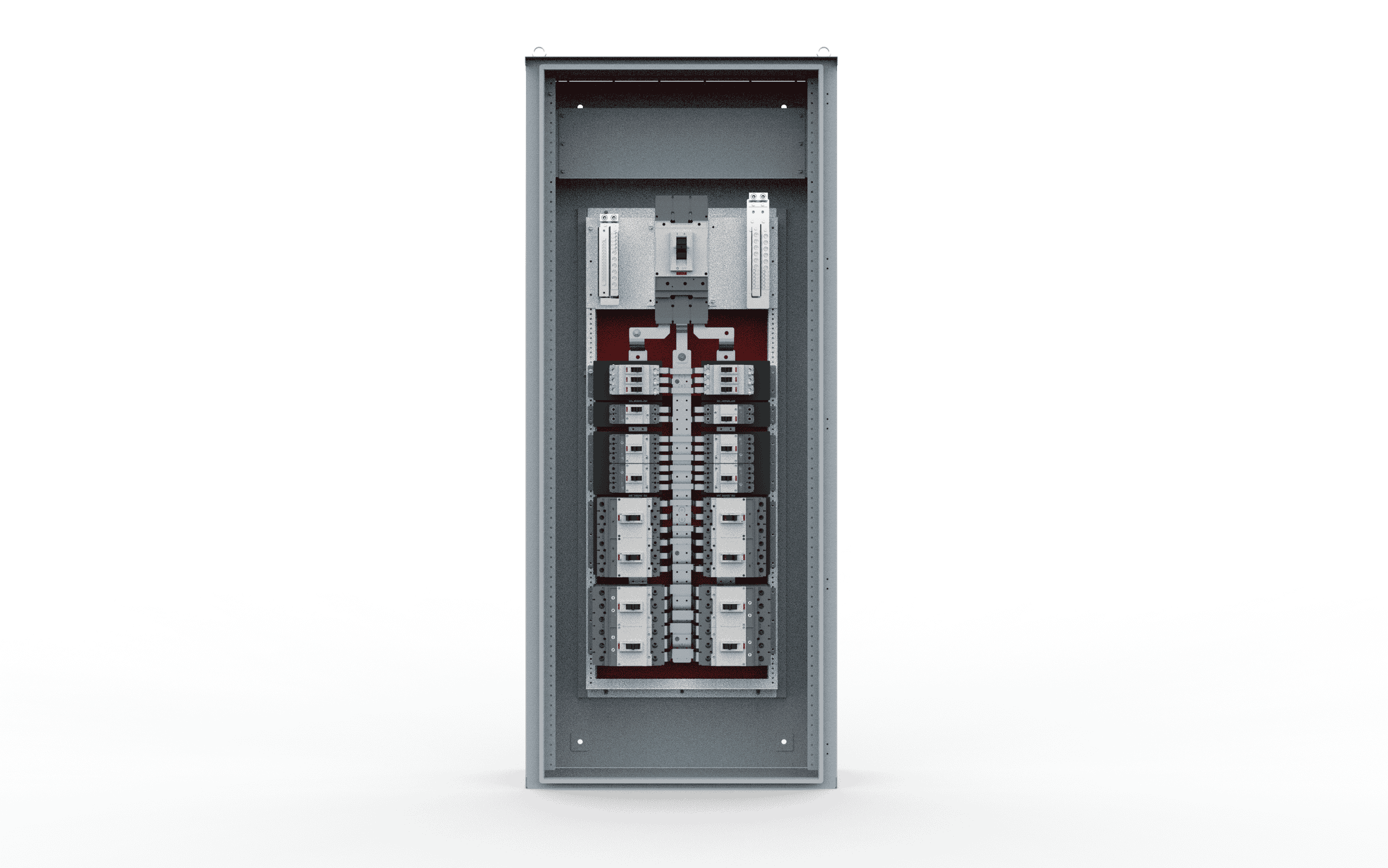

Product Overview

BHP panelboards safely deliver power to branch circuits across residential, commercial and industrial applications, offering a centralized hub for circuit protection and control. With bus ratings up to 1,200 A, BHP panelboards come equipped with bolt-on branch circuit breakers and flexible circuit layouts. A wide selection of breaker ampere ratings is offered to satisfy project-specific load requirements.

Applications

• Industrial complexes
• Commercial and residential buildings

High Reliability & Safety

• UL tested and approved
• User safety considerations

Excellent scalability

• Easy to add branch circuit breakers
• Easy to replace and repair branch circuit breakers

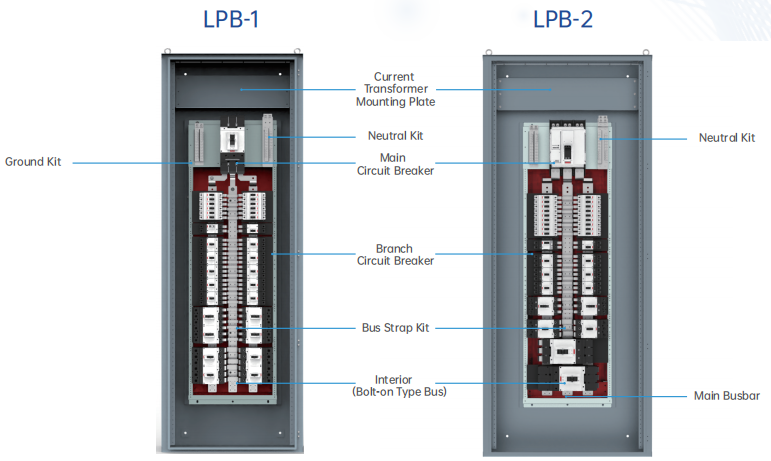

Panelboard Specifications

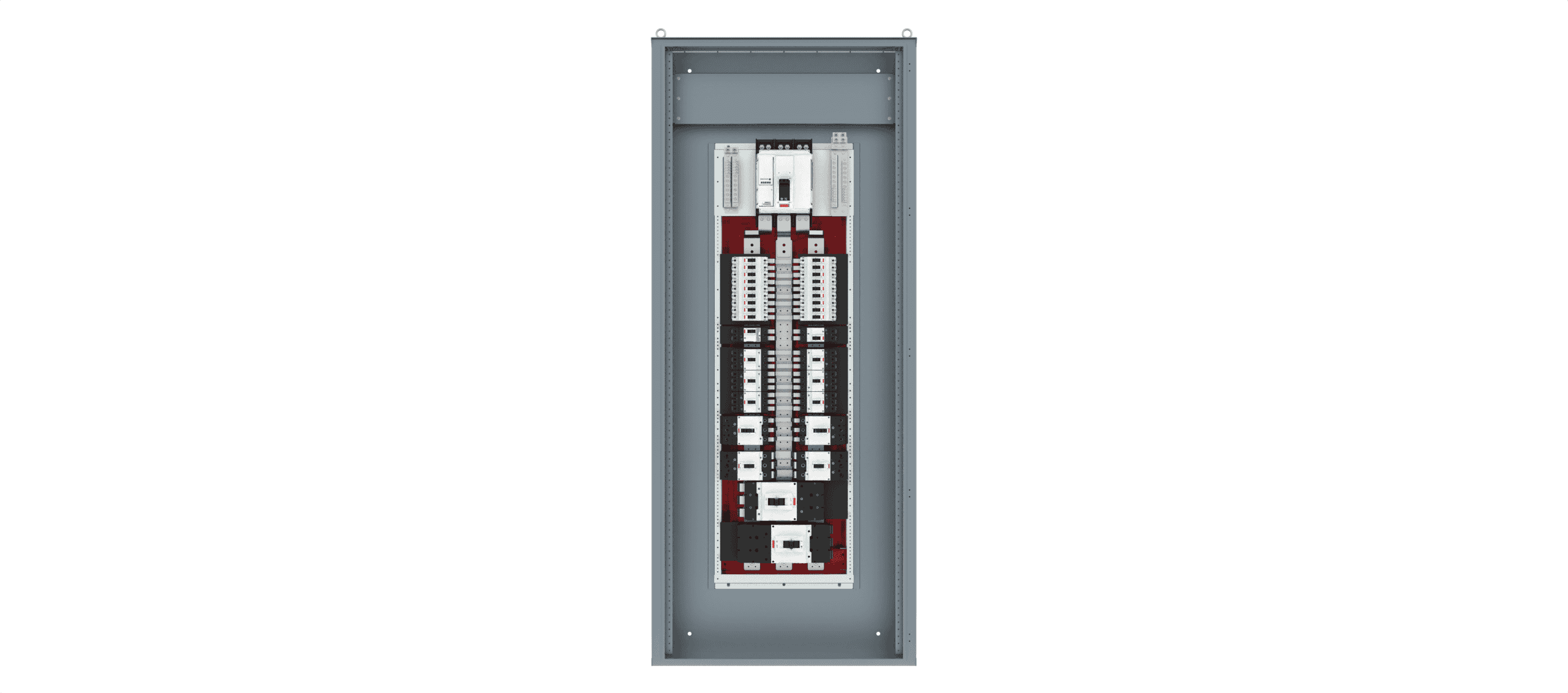

LPB-1

• Bus System: Bolt-on type
• Main Lugs: 400/600 A
• Main Breaker: 250-600 A
• Branch Breakers: 15-250 A
• Enclosure: NEMA Type 3R (Indoor & Outdoor), Door and Dead-front, Std. Dimensions: W32" x H75" ~ 90" x D13"
• Breakers: UL 489 Standard
• Panelboard: UL 67 Standard

LPB-1 panelboard specifications

Description	400 AF	600 AF
Rated Current (A)—Main Breaker	UTS400(250-400)	UTS600(500-600)
Rated Current (A)—Main Lug	400	600
Rated Current (A)—Branch Breaker	UTE100(15-100) UTS150(40-150) UTS250(150-250)
Short Circuit Current Rating (kA,rms)—240 V	50-100
Short Circuit Current Rating (kA,rms)—480 V	25-65
Main Bus Type	Bolt-on
Enclosure Type	NEMA Type 3R (Indoor & Outdoor)
Standard Enclosure Dimension—W	32in (813mm)
Standard Enclosure Dimension—H	90in (2286mm) / 75in (1905mm) Depends on the number of branch breakers
Standard Enclosure Dimension—D	13in (330mm)
Certification Status	UL certified

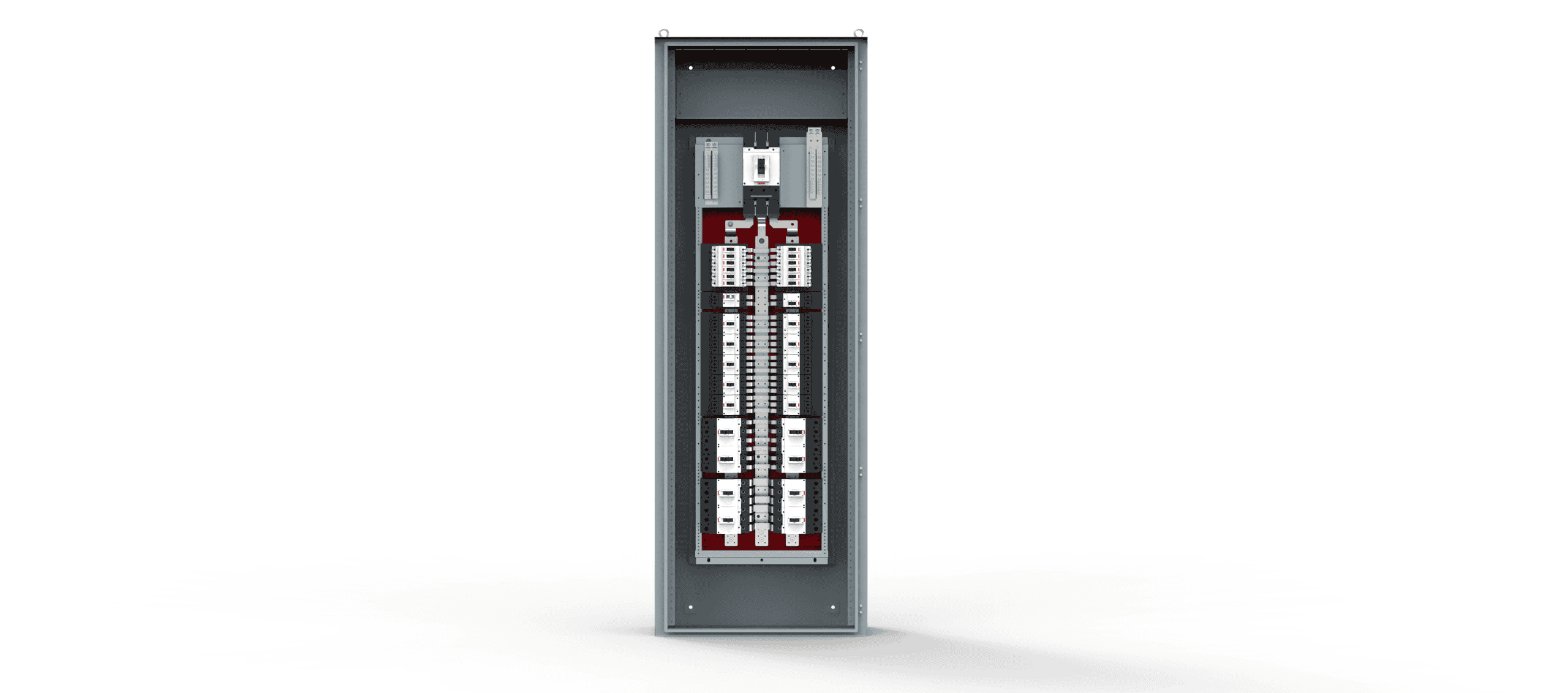

LPB-2

• Bus System: Bolt-on type
• Main Lugs: 800/1200 A
• Main Breaker: 400-1200 A
• Branch Breakers: 15-600 A
• Enclosure: NEMA Type 3R (Indoor & Outdoor), Door and Dead-front, Std. Dimensions: W38" x H75" ~ 90" x D15"
• Breakers: UL 489 Standard
• Panelboard: UL 67 Standard

LPB-2 panelboard specifications

Description	800 AF	1200 AF
Rated Current (A)—Main Breaker	UTS800(400-800)	UTS1200(800-1200)
Rated Current (A)—Main Lug	800	1200
Rated Current (A)—Branch Breaker	UTE100(15-100) UTS150(40-150) UTS250(150-250) UTS400(250-400) UTS600(500-600) UTS800(400-800)	UTE100(15-100) UTS150(40-150) UTS250(150-250) UTS400(250-400) UTS600(500-600) UTS800(400-800) UTS1200(800-1200)
Short Circuit Current Rating (kA,rms)—240 V	50-100
Short Circuit Current Rating (kA,rms)—480 V	25-65
Main Bus Type	Bolt-on
Enclosure Type	NEMA Type 3R (Indoor & Outdoor)
Standard Enclosure Dimension—W	38in (965mm)
Standard Enclosure Dimension—H	90in (2286mm) / 75in (1905mm) Depends on the number of branch breakers
Standard Enclosure Dimension—D	15in (380mm)
Certification Status	UL certified
