Low Voltage Power Distribution Board

Product Overview

        • PANELBOARD is an essential component in power distribution, designed to safely distribute power from the main power source to individual branch circuits. It is the central point for managing and controlling electrical flow in residential, commercial and industrial applications.

        • BHPS panelboard has main busbar up to 1200AF manufactured in bolt-on type, branch circuit break ers can be moved freely and there is no limit in capacity selection.

Applications

       • Industrial complexes

       • Commercial and residential buildings

High reliability and safety

       • UL tested and approved

       • User safety considerations

Excellent scalability

       • Easy to add the branch circuit breakers

       • Easy to replace and repair the branch circuit breakers

Panelboard Specifications

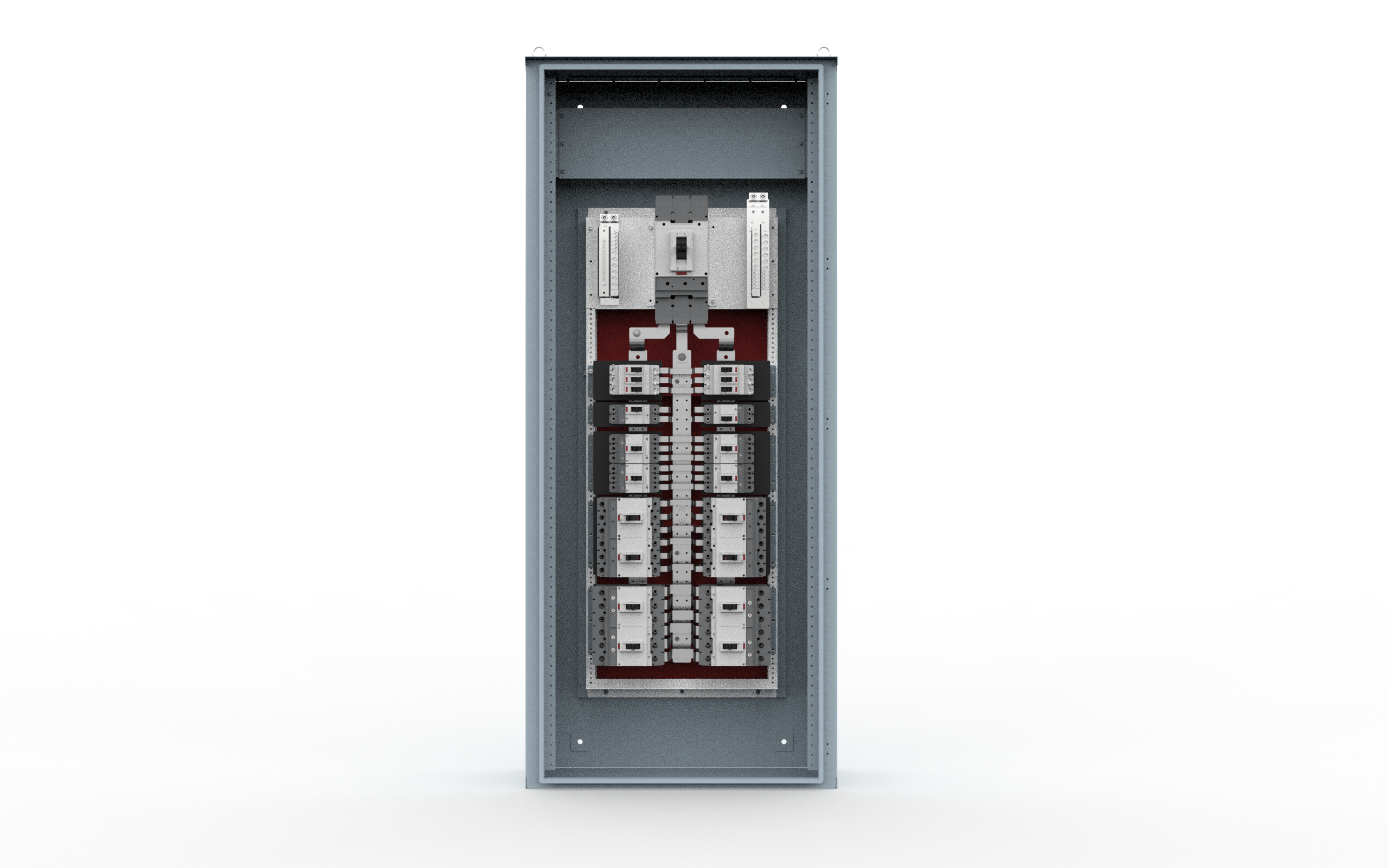

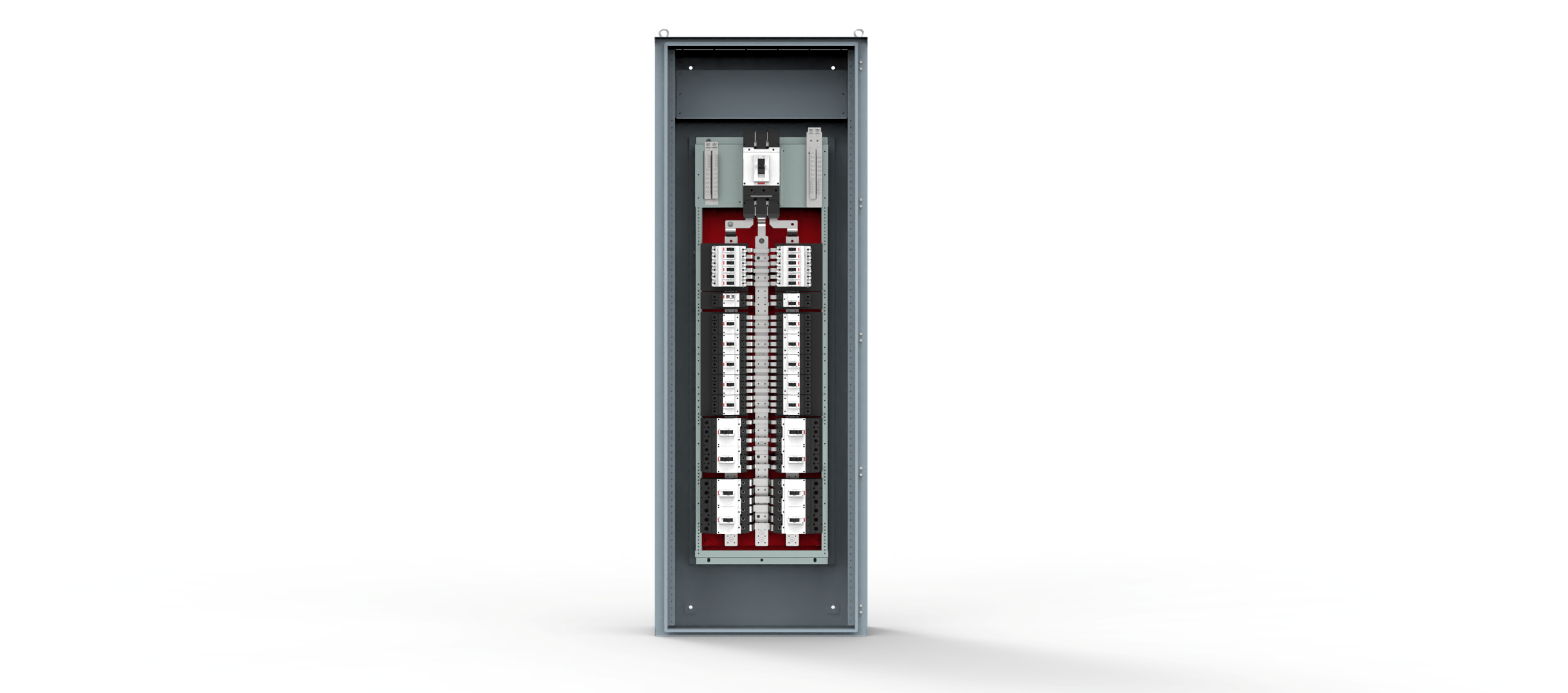

       LPB-1

       • Bus System: Bolt-on type

       • Main Lugs: 400/600A

       • Main Breakers: 250-600A

       • Branch Breakers: 15–250A

       • Enclosure

             -NEMA Type 3R (Indoor & Outdoor)

             -Door and Dead-front

             -Std. Dimension: W32”×H75”~ 90”×D13”

       • Breakers: UL489 Standards

       • Panelboard: UL67 Standards

 Description  400AF  600AF
 Rated Current(A)  Main Breaker
 Main Lug
 Branch Breaker
UTS400(250-400) UTS600(500-600)
 400  600
 UTE100(15-100)
 UTS150(40-150)
 UTS250(150-250)
 Short Circuit Current Rating (kA,rms)  240V
 480V
50-100
25-65
 Main Bus Type  Bolt-on
 Enclosure Type  NEMA Type 3R(Indoor & Outdoor)
 Standard Enclosure Dimension Inch(mm)  W
 H
 D
 32in(813mm)
 90in(2286mm) / 75in(1905mm)
Depends on the number of branch breakers
 13in(330mm)

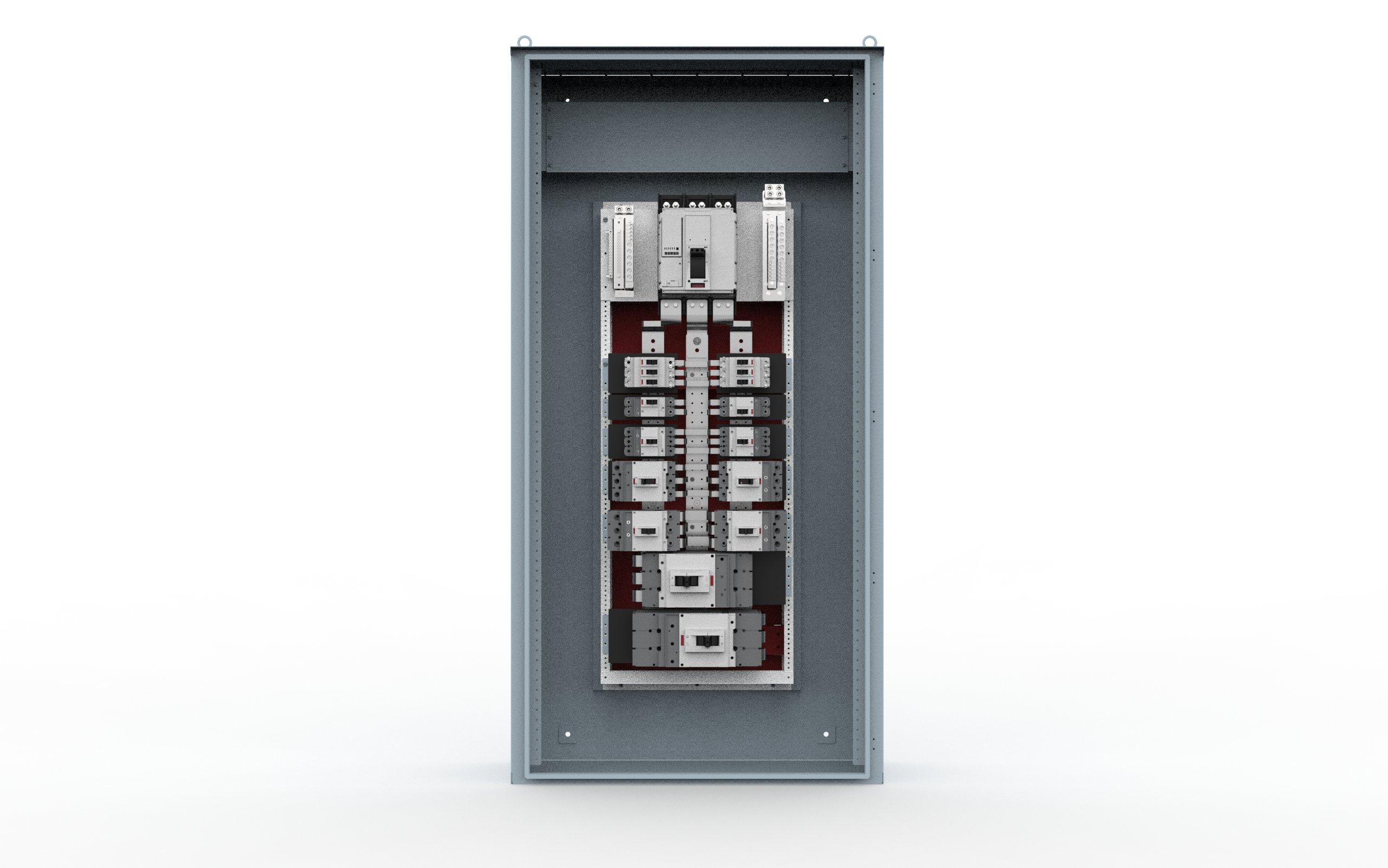

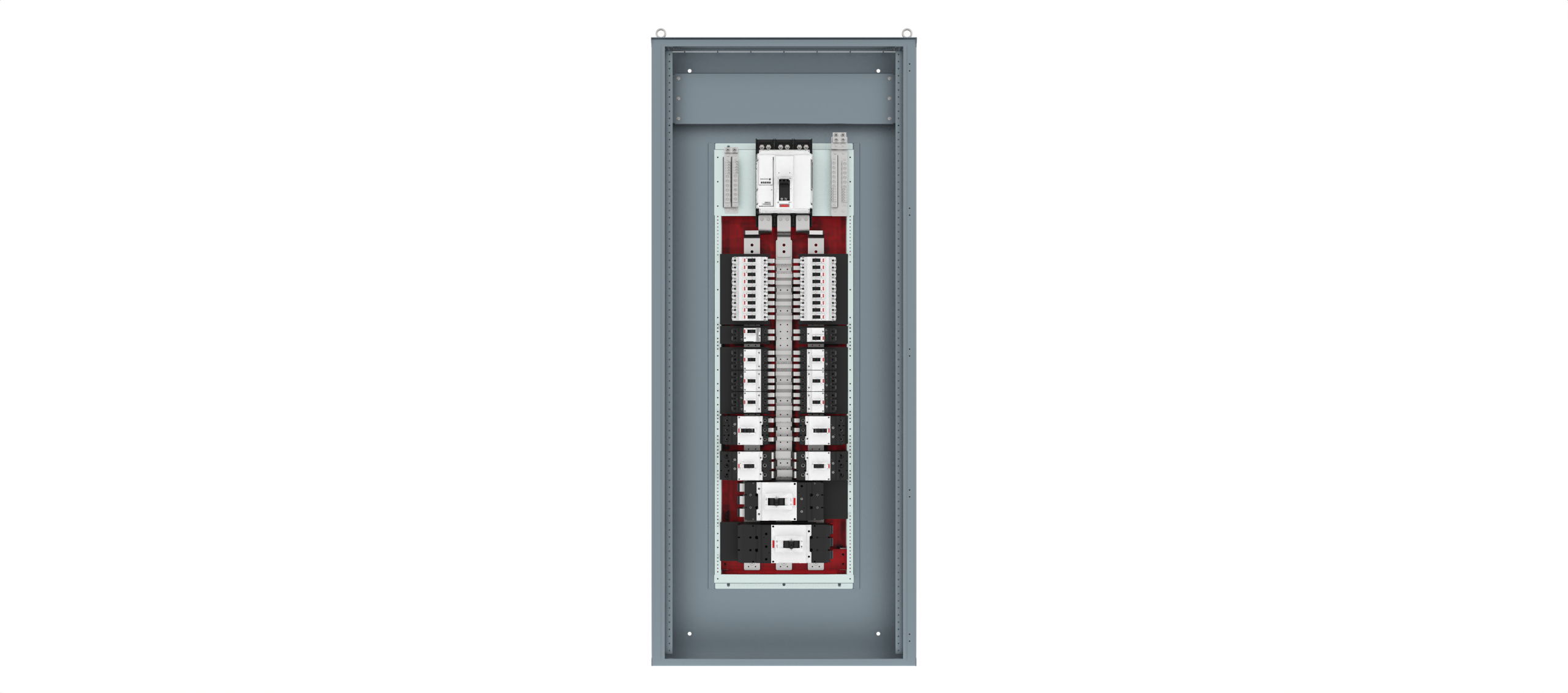

       LPB-2

       • Bus System: Bolt-on type

       • Main Lugs: 800/1200A

       • Main Breakers: 400-1200A

       • Branch Breakers: 15–600A

       • Enclosure

             -NEMA Type 3R(Indoor & Outdoor)

             -Door and Dead-front

             -Std. Dimension: W38”×H75”~ 90”×D15”

       • Breakers: UL489 Standards

       • Panelboard: UL67 Standards

 Description  800AF  1200AF
 Rated Current(A)  Main Breaker
 Main Lug
 Branch Breaker
 UTS800(400-800)  UTS1200(800-1200)
 800  1200
 UTE100(15-100)
 UTS150(40-150)
 UTS250(150-250)
 UTS400(250-400)
 UTS600(500-600)
 UTS800(400-800) 		 UTE100(15-100)
 UTS150(40-150)
 UTS250(150-250)
 UTS400(250-400)
 UTS600(500-600)
 UTS800(400-800)
 UTS1200(800-1200)
 Short Circuit Current Rating (kA,rms)  240V
 480V
 50-100
 25-65
 Main Bus Type  Bolt-on
 Enclosure Type  NEMA Type 3R(Indoor & Outdoor)
 Standard Enclosure Dimension Inch(mm)  W
 H
 D
 38in(965mm)
 90in(2286mm)/75in(1905mm)
 Depends on the number of branch breakers
 15in(380mm)
Panelboard

Panelboard has different circuit breaker specifications and capacities depending on the purpose of use. Therefore, flexible production methods are essential，Designed for power plants, oil and gas, chemical, metallurgical, textile, and high-rise facilities, the system is safe, reliable, and easy to operate.
